L823 Type II, Class B, Style 12, Secondary Connector Kit
|
| To FAA Advisory Circular AC 150 / 5345-47 |
|
|
Kit Contents
|
Cut-away of complete Connector
|
 |
- Silicone Lubricant
- Wiper
- Installation Instructions
|
|
 |
How to specify for quotation:
"Amerace® 91R Secondary Receptacle Kit for two core cable" is a sufficient description , all sizes are the same price.
How to specify for ordering:

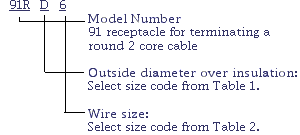

Develop a catalog number as follows:
|
 |
| Table 1 |
| Insulation O.D. |
| Metric |
Imperial |
Size |
| Min. |
Max. |
Min. |
Max |
Code |
| 8,1 |
10,9 |
.320" |
.430" |
D |
| 10,7 |
14,9 |
.420" |
.585" |
E |
| 14,6 |
19,9 |
.575" |
.785" |
F |
|
| Table 2 |
| Wire Size |
Size
Code |
| Concentric Stranded |
Solid |
| . |
14-16AWG |
. |
12-14AWG |
8 |
| 2,5mm2 |
. |
. |
. |
6 |
| 4mm2 |
10-12AWG |
6mm2 |
8-10AWG |
6 |
| 6mm2 |
8-AWG |
10mm2 |
6 AWG |
4 |
|
Example
Order catalog number 91R-D6 for a secondary connector kit for a receptacle (female) termination on a round 2 core cable with an outside diameter over insulation between 8,1 (.320") and 10,9 (.430") and wire size of 4mm2 (10-12 AWG) stranded or 6mm2 (8-10 AWG) solid. |
Shipping
0,06kg (.14#) each
100/box
6,5 kg (14#) |
|
| Suggested Crimping Tools |
|
Note
91R E6 fits Amerace® "G" (2/12) cable |
|
 |
|
