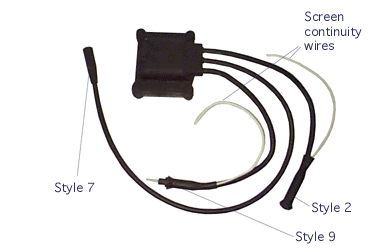

Series Isolating Transformers
|
| Built in the same manner as FAA L-830 and L-831 models, but with screened primary leads |
Screened Primary Lead 60 Hz Models
|
Amerace
Catalog No. |
Rated
Watts |
Prim/Sec
Amps |
Fig. |
Appr.Shp.Wt
Kg. / Lbs. |
| TAS045666-10 |
30/45 |
6.6/6.6 |
43 |
2,4 / 5.2 |
| TAS045266-10 |
30/45 |
20/6.6 |
43 |
2,3 / 5.0 |
| TAS065666-10 |
65 |
6.6/6.6 |
44 |
2,4 / 5.25 |
| . |
100 |
Use dual rated - see below |
| TAS100266-10 |
100 |
20/6.6 |
44 |
3,6 / 8.0 |
| TAS200666-10 |
200 |
6.6/6.6 |
46 |
4,9 / 10.8 |
| TAS200266-10 |
200 |
20/6.6 |
46 |
4,9 / 10.8 |
| TAS300626-10 |
300 |
6.6/20 |
47 |
6,9 / 15.1 |
| TAS300226-10 |
300 |
20/20 |
47 |
7,7 / 17.0 |
| TAS300666-10 |
300 |
6.6/6.6 |
47 |
7,1 / 15.8 |
| TAS300266-10 |
300 |
20/6.6 |
47 |
7,9 / 17.5 |
| TAS500626-10 |
500 |
6.6/20 |
48 |
8,0 / 17.6 |
| TAS500226-10 |
500 |
20/20 |
48 |
8,4 / 18.5 |
| Screened Primary Lead 50 Hz Models |
Amerace
Catalog No. |
Rated
Watts |
Prim/Sec
Amps |
Fig. |
Appr.Shp.Wt
Kg. / Lbs |
| TAS045665-10 |
30/45 |
6.6/6.6 |
43 |
2,4 / 5.2 |
| TAS045265-10 |
30/45 |
20/6.6 |
43 |
2,3 / 5.0 |
| TAS065665-10 |
65 |
6.6/6.6 |
44 |
2,5 / 5.49 |
| . |
100 |
Use dual rated - see below |
| TAS100265-10 |
100 |
20/6.6 |
44 |
3,1 / 6.9 |
| TAS200665-10 |
200 |
6.6/6.6 |
46 |
5,6 / 12.4 |
| TAS200265-10 |
200 |
20/6.6 |
46 |
5,9 / 13.0 |
| TAS300625-10 |
300 |
6.6/20 |
47 |
7,7 / 17.0 |
| TAS300225-10 |
300 |
20/20 |
47 |
7,9 / 17.5 |
| TAS300665-10 |
300 |
6.6/6.6 |
47 |
7,9 / 17.5 |
| TAS300265-10 |
300 |
20/6.6 |
47 |
7,9 / 17.5 |
| TAS500625-10 |
500 |
6.6/20 |
48 |
8,4 / 18.5 |
| TAS500225-10 |
500 |
20/20 |
48 |
3,5 / 18.5 |
| TAS500666-10 |
500 |
6.6/6.6 |
48 |
8,8 / 18.39 |
| TAS500266-10 |
500 |
20/6.6 |
48 |
8,4 / 18.5 |
| TAS500665-10 |
500 |
6.6/6.6 |
48 |
8,5 / 18.68 |
| Dual Rated Transformers 50/60 Hz Models |
Amerace
Catalog No. |
Rated
Watts |
Prim/Sec
Amps |
Fig. |
Appr.Shp.Wt
Kg. / Lbs |
| TAS04566D-10 |
30/45 |
6.6/6.6 |
43 |
2,4 / 5.2 |
| TAS06566D-10 |
65 |
6.6/6.6 |
44 |
3,2 / 7.7 |
| TAS10066D-10 |
100 |
6.6/6.6 |
44 |
3,3 / 7.7 |
| To change from a Style 7 secondary connector to Style 8, change suffic from -10 to -01. |
 |
|
|
|
|
