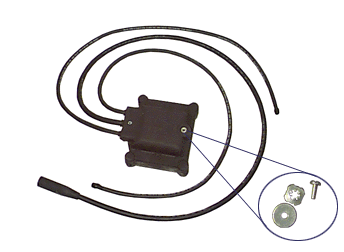

| UK TISE Type Transformers |
|
Amerace
Catalog No. |
Rated
Watts |
Prim/Sec
Amps |
Freq.
Hz |
Fig.
|
Appr.Ship.Wt.
Kg. / Lbs. |
| TISE 10 |
36 |
6/6 |
50 |
31 |
2,4 / 5.2 |
| TISE 16 |
100 |
12/8.33 |
50 |
32 |
3,3 / 7.2 |
| TISE 17 |
200 |
12/8.33 |
50 |
34 |
4,9 / 10.9 |
| TISE 21 |
200 |
12/6.6 |
50 |
34 |
4,9 / 10.9 |
| TISE 28 |
100 |
12/6.6 |
50 |
32 |
3,3 / 7.2 |
| 1. Primary has flying leads (no connectors), sealed for protection during shipping and storage. |
| 2. Secondary lead has MoD S2 (FAA Style 7) receptacle |
| 3. The core and one side of the secondary are connected to the earth terminal |
|
|
|
|
|
|
| Return to selector chart |
.
.
UK Style Transformers
|
Amerace
Catalog No. |
Rated
Watts |
Prim/Sec
Amps |
Freq.
Hz |
Fig.
|
Appr.Ship.Wt.
Kg. / Lbs. |
| UK TAG 045165-10 |
45 |
12/6.6 |
50 |
38 |
2,4 / 5.2 |
| UK TAG 045665-10 |
45 |
6.6/6.6 |
50 |
37 |
2,4 / 5.2 |
| UK TAG 065165-10 |
65 |
12/6.6 |
50 |
38 |
2,5 / 5.5 |
| UK TAG 100165-10 |
100 |
12/6.6 |
50 |
38 |
3,3 / 7.7 |
| UK TAG 10066D-10 |
100 |
6.6/6.6 |
50/60 |
38 |
3,7 / 8.2 |
| UK TAG 150665-10 |
150 |
6.6/6.6 |
50 |
39 |
4,7 / 10.3 |
| UK TAG 150165-10 |
150 |
12/6.6 |
50 |
|
4,7 / 10.3 |
| UK TAG 200165-10 |
200 |
12/6.6 |
50 |
40 |
5,6 / 12.4 |
| UK TAG 200665-10 |
200 |
6.6/6.6 |
50 |
40 |
5,6 / 12.4 |
| UK TAG 300165-10 |
300 |
12/6.6 |
50 |
42 |
8,4 / 18.5 |
| 1. Primary has flying leads (no connectors), sealed for protection during shipping and storage. |
| 2. One side of the secondary is connected to the earth terminal. |
| 3. For a Style 8 secondary connector, change the last 2 digits to 01, e.g. UKTAG045165-01 |
| 4. For no secondary connector, change the last 2 digits to 00, e.g. UKTAG045165-00 |
Other power capabilities and ratios available - contact |
|
|
|
|
|
|
