Introduction to Airfield Lighting Circuits #3

What does a typical series circuit or "loop" look like?

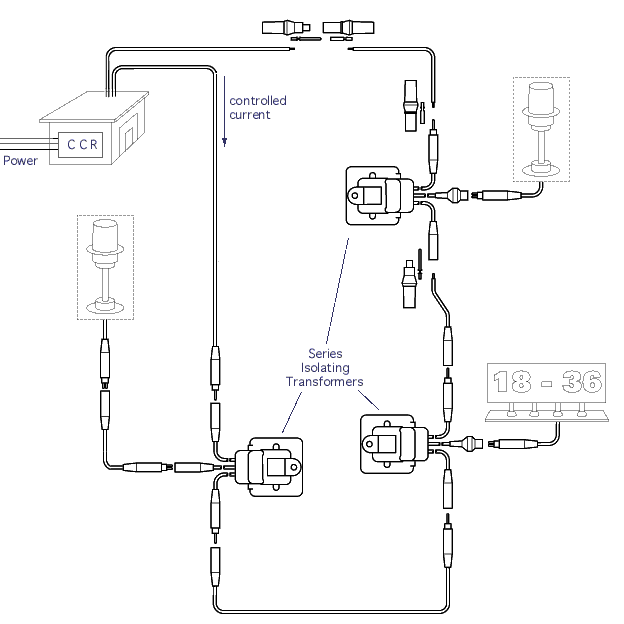

This schematic shows a loop with only 3 devices. Real loops will have up to 100 or more devices, and may be as much as 6000 meters (20,000 feet) in length.

Series isolating transformers
