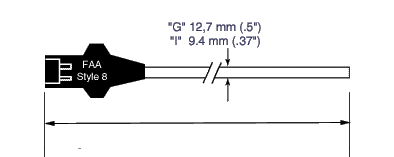

Secondary Cable Assembly
FAA L823 Type II, Class A
 |
|
| Available in 1/2 meter (20") increments to any length |
|
|
|
Ordering information
Develop a complete catalog number by choosing the characters to fill the empty boxes below
| Catalog Number |
|
o |
| Cable |
| G |
2/12 AWG (3,3mm2), thermoplastic-rubber insulated, watertight cable with overall jacket, rated 600 volts between contacts, 1500 volts to earth, 20 amps, 90°C |
o |
|
o |
| I |
2/16 AWG (1,3mm2), thermoplastic-rubber insulated, watertight cable with overall jacket, rated 600 volts between contacts, 1500 volts to earth, 20 amp, 90°C |
Length in meters
Available in 1/2 meter increments to any length |
o |
|
ETL Certificate
|
|
|
