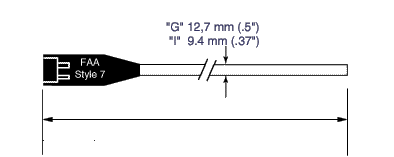

Secondary Cable Assembly

FAA L823 Type II, Class A

Available in 1/2 meter (20") increments to any length
Ordering information
Develop a complete catalog number by choosing the characters to fill the empty boxes below
Catalog Number
95MR7
o
Cable
G 2/12 AWG (3,3mm2), thermoplastic-rubber insulated, watertight cable with overall jacket, rated 600 volts between contacts, 1500 volts to earth, 20 amps, 90°C o
o
o
I 2/16 AWG (1,3mm2), thermoplastic-rubber insulated, waterproof cable with overall jacket, rated 600 volts between contacts, 1500 volts to earth, 20 amp, 90°C
Length in meters
Available in 1/2 meter increments to any length
o
o

ETL Certificate
