Fixture Leads

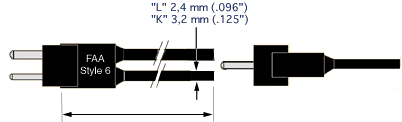

FAA L823 Type II, Class A, Style 6 Plug
High Temperature Lead

Available in 1/2 meter (20") increments to any length
Ordering information
Develop a complete catalog number by choosing the characters to fill the empty boxes below
Catalog Number
95MP6
o
Cable
K Two individual wires, #14 AWG (2,1mm2), Teflon insulated, rated 600 volts between contacts, 1500 volts to earth, 20 amperes, 200° C. Wires certified to UL1199 and CSA1A/B o
o
o
L Two individual wires, #16 AWG (1,3mm2), Teflon insulated, rated 600 volts between contacts, 1500 volts to earth, 20 amperes, 200° C. Wires certified to UL1199 and CSA1A/B
Length in meters
Available in 1/2 meter increments to any length
o
o

ETL Certificate
