Amerace® 600V Watertight Connector Kits
Fused Single Pole In-Line Style 65
Fused Double Pole In-Line Style D65
Single Pole In-Line Style 20 (obsolete)
......
Style 65TM Kit
Type: single pole in-line fused
Electrical rating: for 600 volt 1/10-30 amp, 13/32" x 1-1/2" fuse
Conductor: copper
 |
Line side housing
(Receptacle) |
Crimp-on fuseholders |
Load side housing
(Plug) |
| Catalog No. |
Conductor
Size AWG |
Conductor
Material |
Ship.Weight
lbs./100 |
Insulation diameter
range |
| Style 65U |
14 to 6 |
Copper |
20 |
.120" - .430" |
Style 65UA |
14 thru 6 |
Aluminum |
20 |
.120" - .430" |
Style 65LC |
4 or 2 |
Copper |
20 |
.120" - .430" |
Style 65LA |
4 or 2 |
Aluminum |
20 |
.120" - .430" |
example: the catalog number for a 65 kit to accommodate #6 copper would be 65U
,,
,
,.

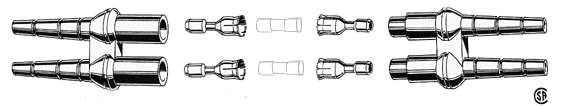

Style D65TM Kit
Type: double pole in-line fused
Electrical rating: for 600 volt 1/10-30 amp, 13/32" x 1-1/2" fuse
Conductor: copper
 |
Line side housing
(Receptacle) |
Crimp-on fuseholders |
Load side housing
(Plug) |
| Catalog No. |
Conductor
Size AWG |
Conductor
Material |
Ship.Weight
lbs./100 |
Insulation diameter
range |
| Style D65U |
14 to 6 |
Copper |
40 |
.120" - .430" |
Style D65UA |
14 thru 6 |
Aluminum |
40 |
.120" - .430" |
Style D65LC |
4 or 2 |
Copper |
40 |
.120" - .430" |
Style D65LA |
4 or 2 |
Aluminum |
40 |
.120" - .430" |
example: the catalog number for a D65 kit to accommodate #6 copper would be D65U
,
,......
Style 20TM Kit (obsolete)
Type: single pole in-line unfused
 |
Line side housing
(Receptacle) |
Crimp-on fuseholders |
Load side housing
(Plug) |
| Catalog No. |
Conductor
Size AWG |
Conductor
Material |
Ship.Weight
lbs./100 |
Insulation diameter
range |
Style 20U |
14 thru 6 |
Copper |
16 |
.120" - .430" |
Style 20UA |
14 thru 6 |
Aluminum |
16 |
.120" - .430" |
Style 20LC |
4 or 2 |
Copper |
16 |
.120" - .430" |
Style 20LA |
4 or 2 |
Aluminum |
16 |
.120" - .430" |
|
